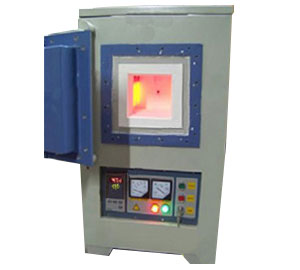

Abrostate-1600A Atmoshpere Muffle furnace
Size 200x200x200mm (8″x8″x8″), Operation Temperature: 1500℃ (1600℃ for short time), Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation, Heavy duty double layer structure with cooling fan. Lower temperature in outside case, PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier), Power control with 30 segments programmable.
| Chamber Size |
200x200x200mm (8″x8″x8″) |
| Working Temperature |
1500C (continuous) |
| Maximum Temperature |
1600C (for short time) |
| Temperature Control |
30 Steps programmable and PID automatic control |
| Heating Rate |
0~15C/min (suggested ≤ 10C) |
| Temperature Accuracy |
+/-1C |
| Heating Element |
Molybdenum Disilicide (MoSi2) |
| Working Voltage |
AC 220V, Single Phase, 60/50 Hz (or according to your requirement) |
| Max. Power |
6 KW |
| Outside Size |
550x540x820mm |
| Net Weight |
200 Kg |
Standard Sizes
| Model |
Chamber size W x H x D in mm |
| Abrostate-1600A |
150x150x150mm (6″x6″x6″) |
| Abrostate-1600A |
150x150x200mm (6″x6″x8″) |
| Abrostate-1600A |
200x200x200mm (8″x8″x8″) |
| Abrostate-1600A |
200x200x300mm (8″x8″x12″) |
| Abrostate-1600A |
250x250x300mm (10″x10″x12″) |
| Abrostate-1600A |
300x300x400mm (12″x12″x16″) |
| Abrostate-1600A |
350x350x400mm (14″x14″x16″) |
| Abrostate-1600A |
400x400x400mm (16″x16″x16″) |
| Abrostate-1600A |
500x500x500mm (20″x20″x20″) |
| Non-standard size could be made according to your requirement. |
